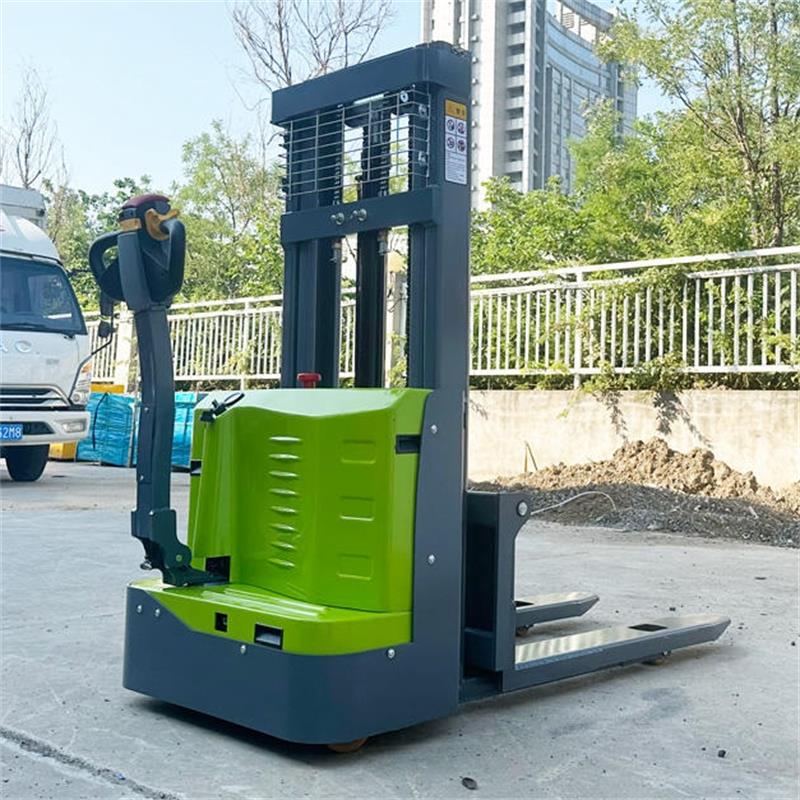

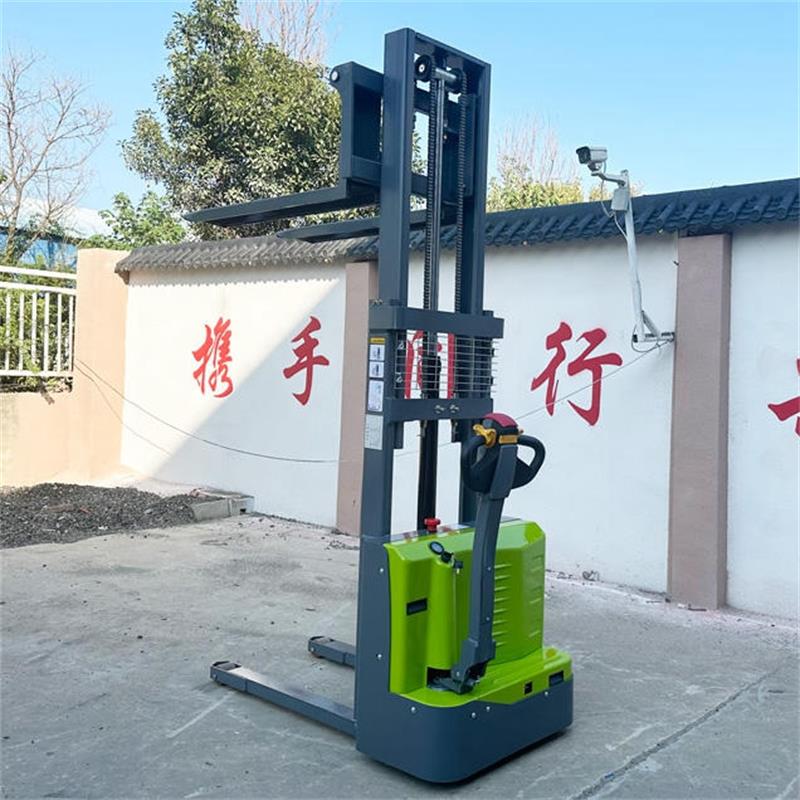

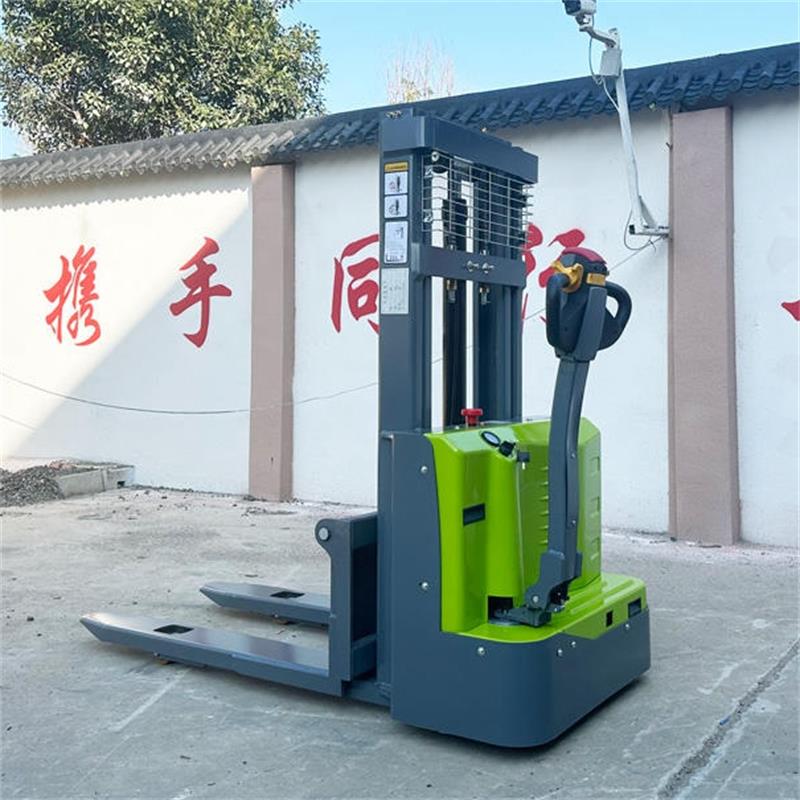

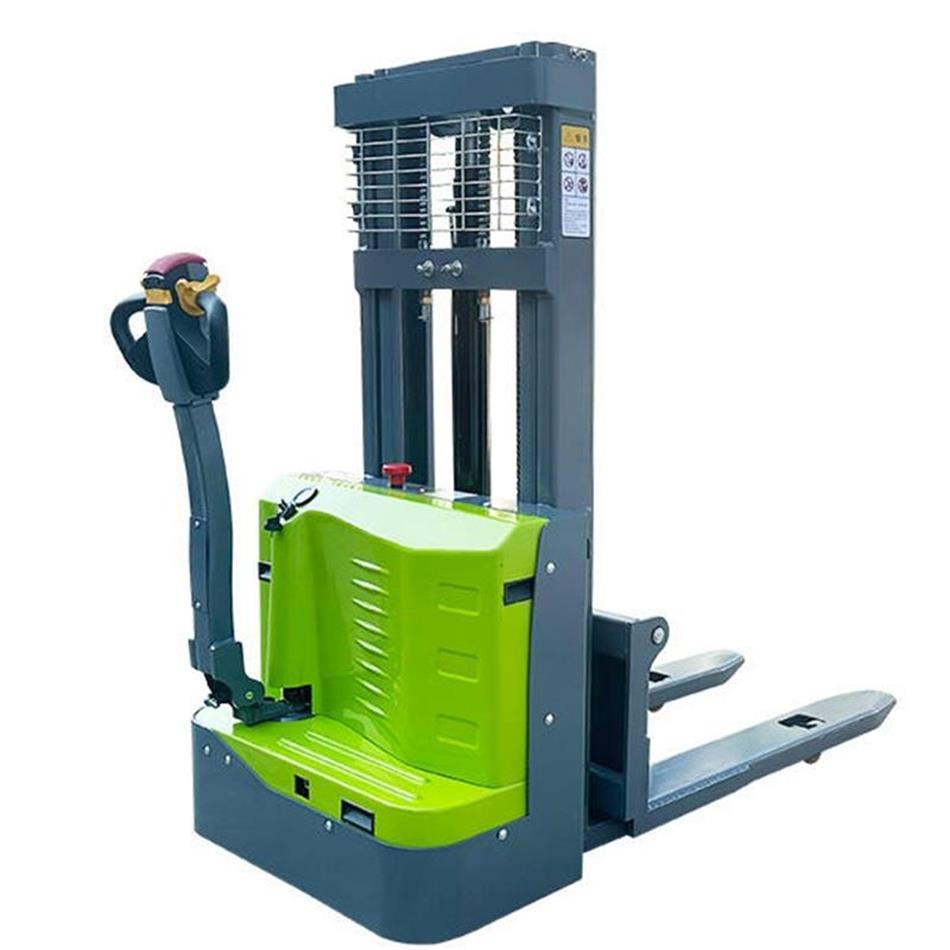

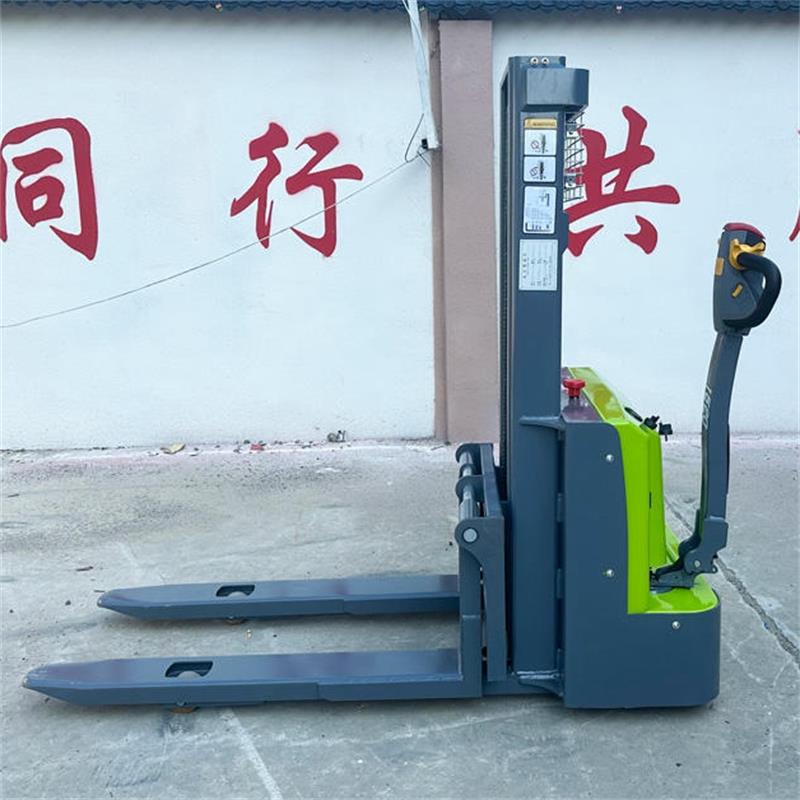

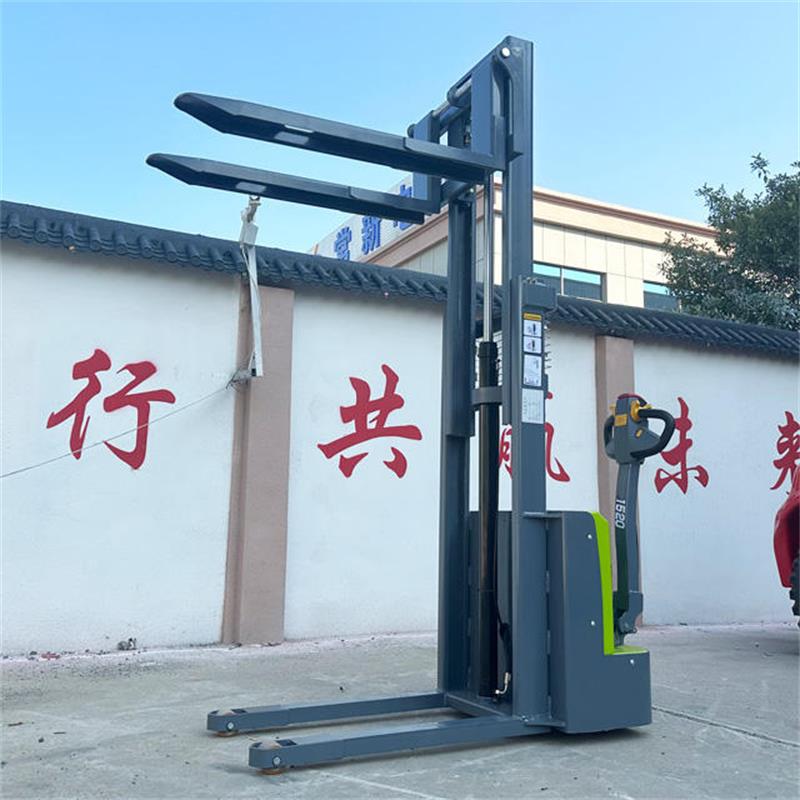

YC-2T Electric Stacker

Product Features :

Multi-function handle

Ergonomic design of multifunctional,operation handle to control,the whole stacker movement

Reinforce plate chain

In line with the requirements of safe load bearing the operation is more assured

Thicken the load fork

A integrated/Thicken monolithic forks/To strengthen the bearing/Not easy to wear and tear/Out of shape not easily

Sealing hydraulic cylinder

Sealed pouring cylinder/Not easy to leak/Long service life/Not easy to corrosion

Contact Now E-Mail Telephone WhatsApp

Product Details

YC-2T Electric Stacker

Product Features :
Multi-function handle
Ergonomic sketch of multifunctional,operation manage to control,the entire stacker movement
Reinforce plate chain
In line with the necessities of protected load bearing the operation is greater assured
Thicken the load fork
A integrated/Thicken monolithic forks/To support the bearing/Not effortless to put on and tear/Out of structure no longer easily
Sealing hydraulic cylinder
Sealed pouring cylinder/Not handy to leak/Long carrier life/Not convenient to corrosion

YC-2T Electric Stacker

Product Parameter：

Model	YC-2000
Rated Capacity	2000KG
Lifting height of standard gantry	1600, 2000, 2500, 3150, 3500, 4000mm
Load center distance	500mm
Minimum height of fork	85mm
Full length pedal up / down	2400mm
Overall Width	850mm
Minimum turning radius	1500mm
Maximum driving speed full load / no load	4/6
Maximum lifting speed full load / no load	80/130
