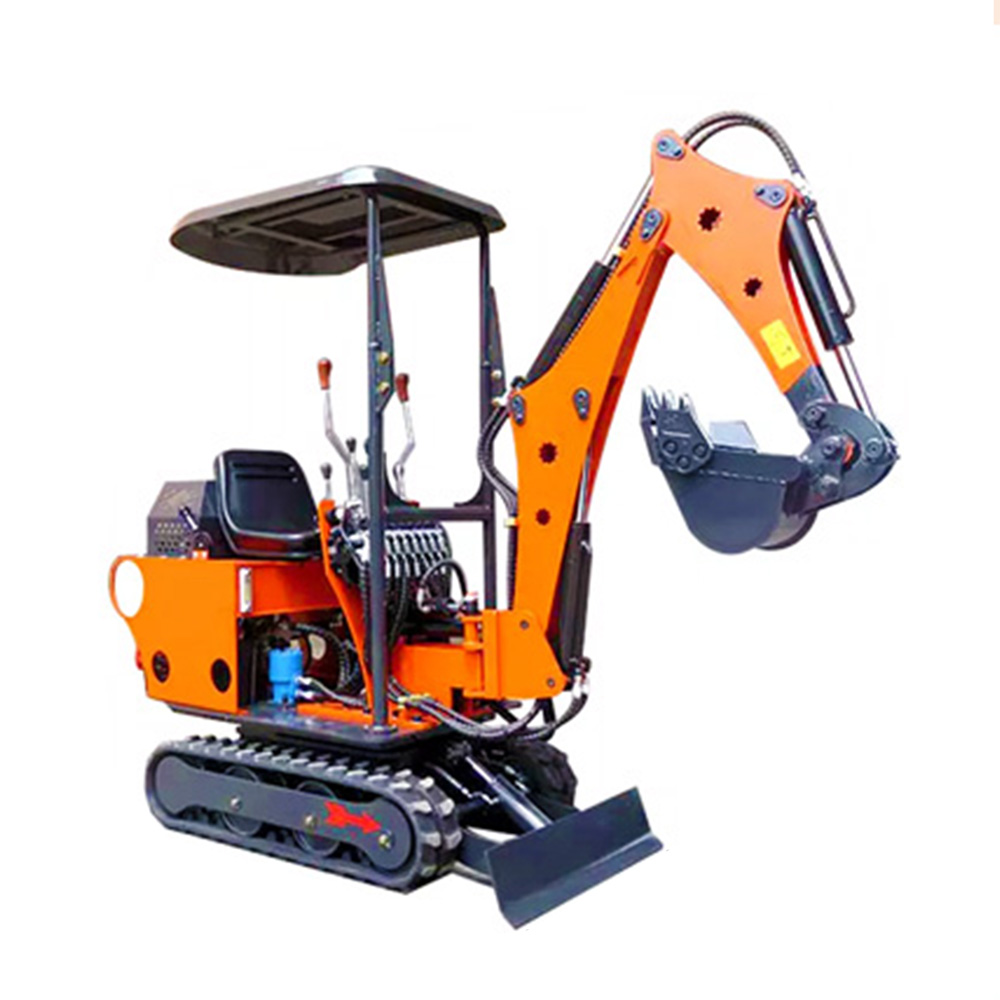

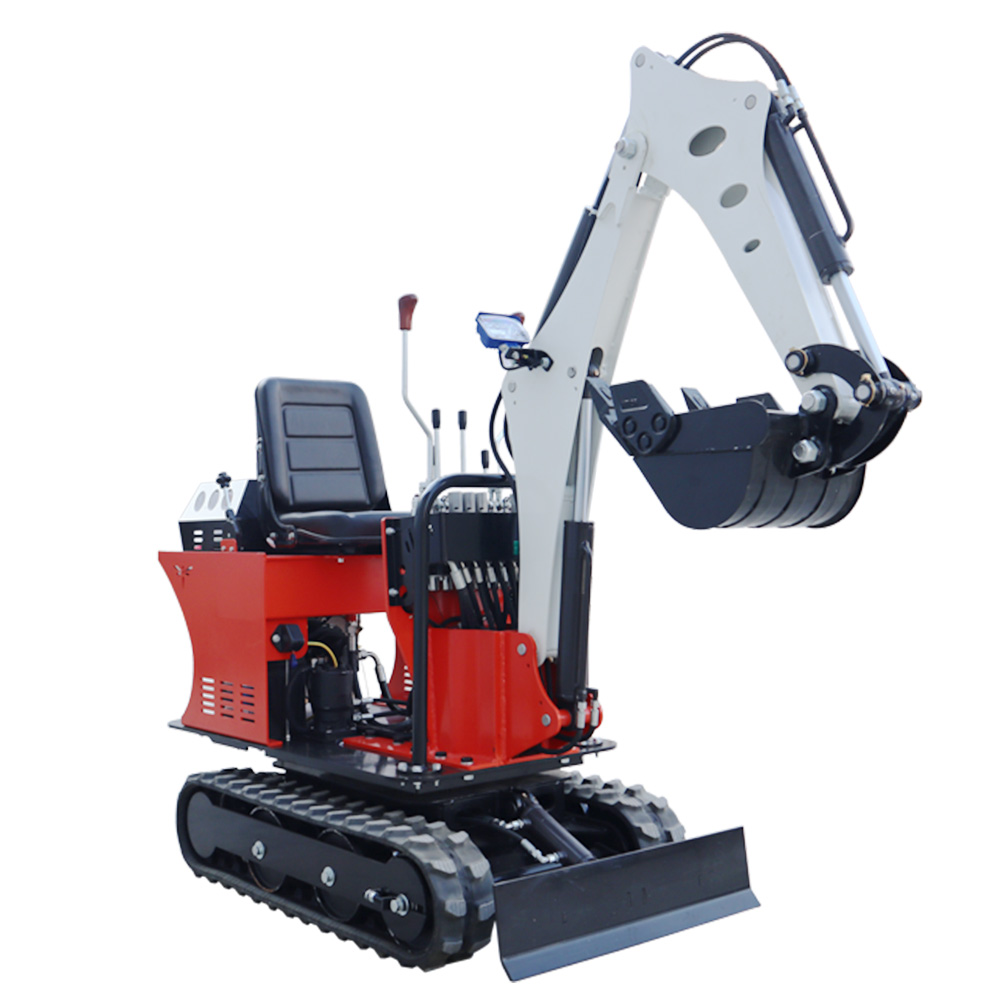

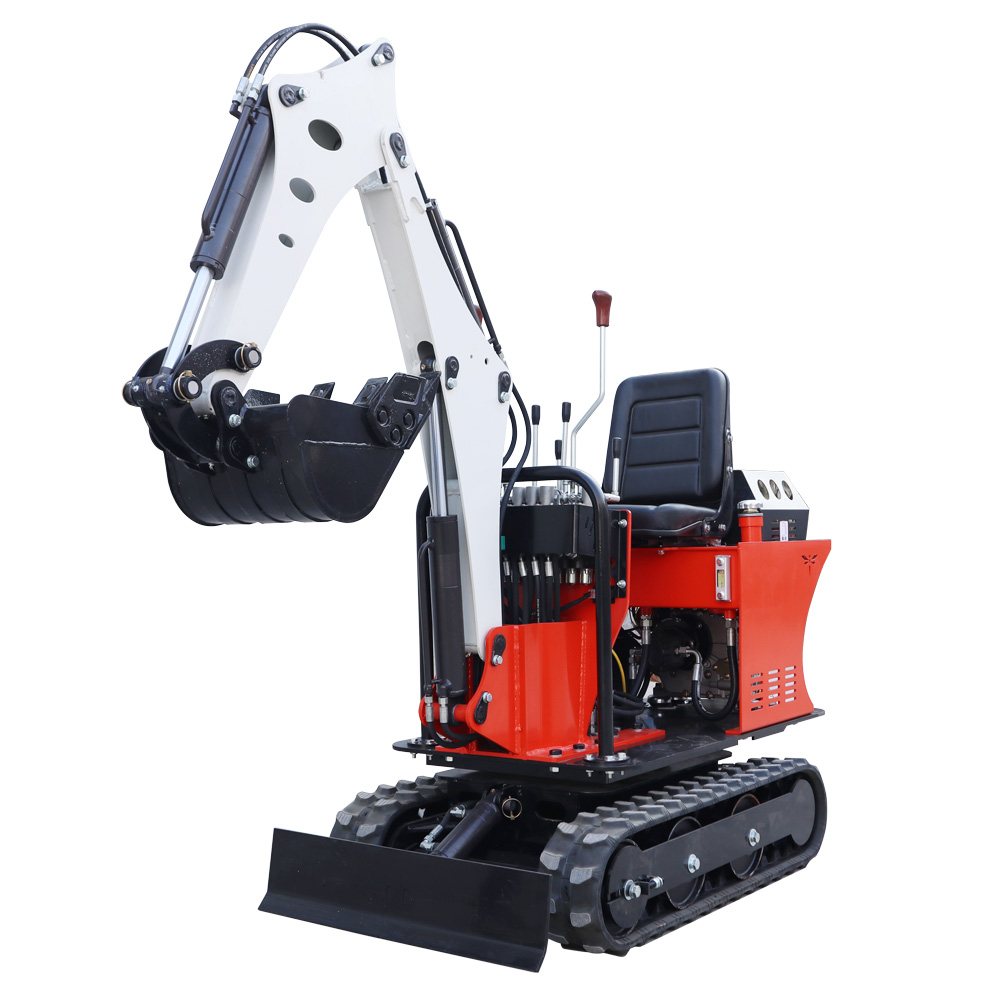

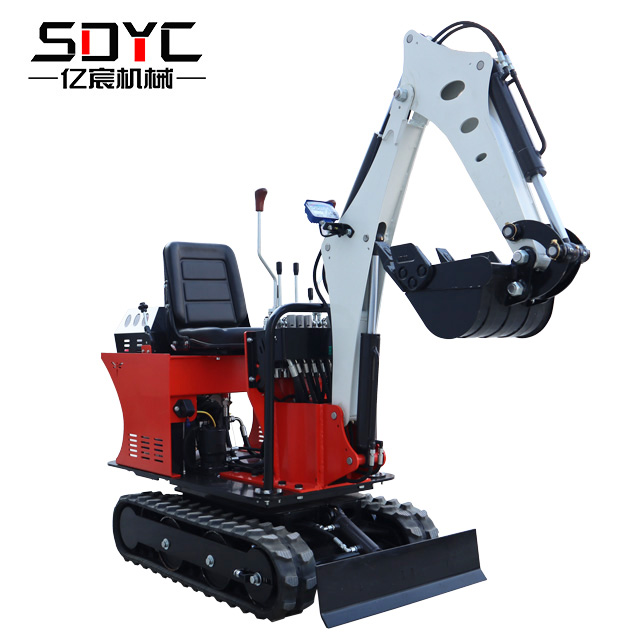

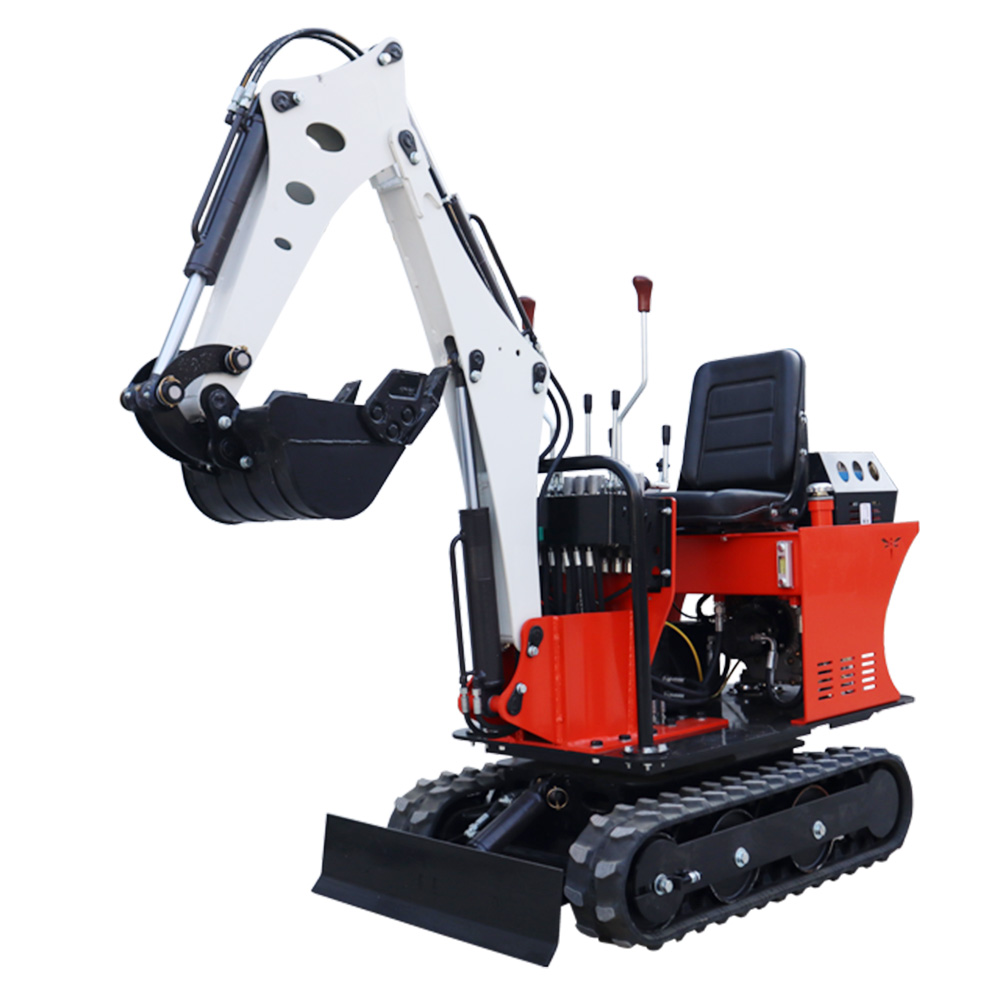

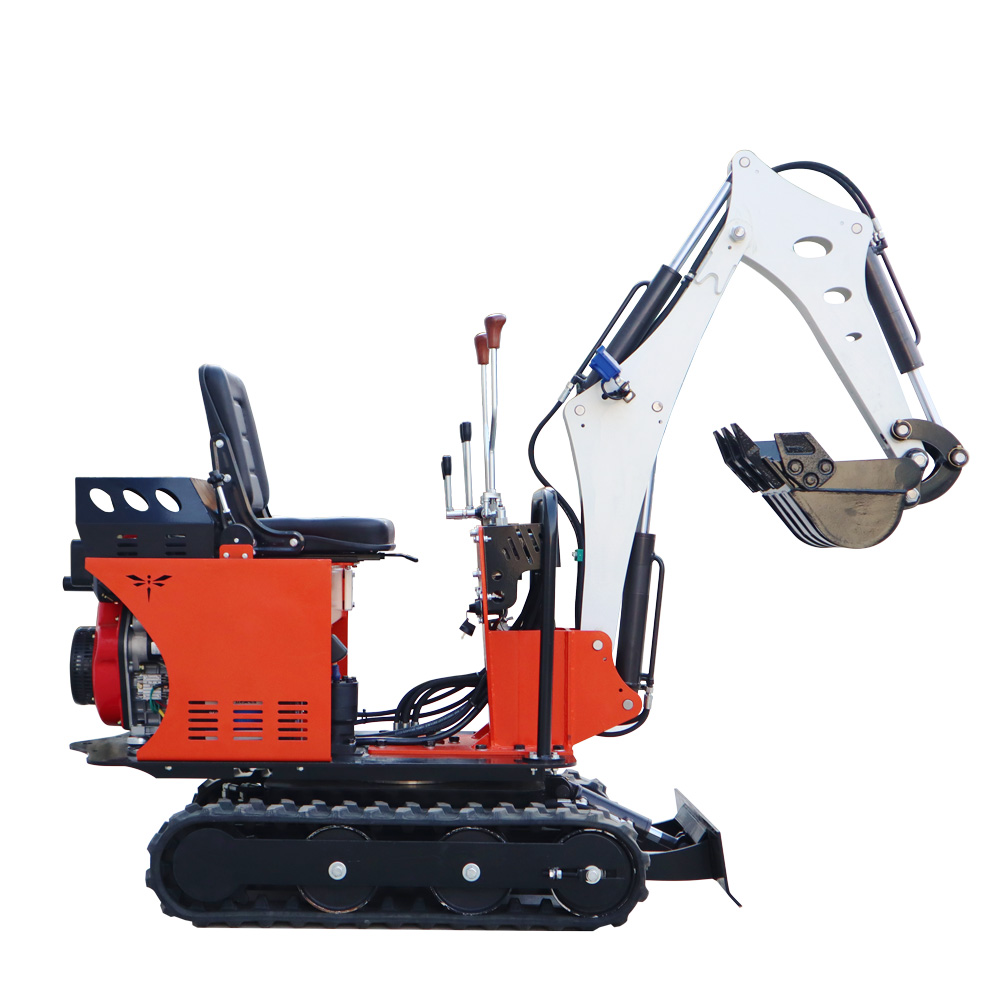

0.8 T Excavator

Strong power, easy operation, entire accessories.
Mini excavator is extensively used in works, such as small projects, gardens, farmland, municipal works, vegetable greenhouse. It is
with compact design, and with low oil consumption,and convenient to maintain.Mini excavators have greater advantages:
1.Hydraulic pump is effortless to maintain, lengthy life
2.The retractable undercarriage lets you get entry to and work in the tightest areas.
3.Rubber music no harm to cement, tile floor
4.Dig-to-blade and dozer glide facets enable for convenient smooth up.
5.Engine can be Kooper Euro 5,changchai,LCT,kubota
6.We additionally have 0.8 ton , 1 ton,1.6 ton, 1.8 ton,2 ton, 2.2 ton and 3.5ton mini excavator for you too choose!
7.We can provide free spare components for the duration of assurance time.

Contact Now E-Mail Telephone WhatsApp

Product Details

This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain. It makes the worker working easily and meaningful.

The Mini Excavator 1 ton is suitable for loosing soil of vegetable greenhouse,campus greening of municipal departments, digging the hole for tree planting of Fruit-land Nurseries, Concrete pavement crushing, sand-gravel material mixing, construction work in the narrow space.

Product Paramenters

Model		YCW-08
Operating Weight		800kg
Digging bucket capacity		0.02cbm
Bucket width		350mm
Engine		koop 192/Changchai
Swing motor		Eaton
Travel speed		2km/h
Rated power		8.6 kw/2800r/min
Overall dimension( LxWxH)		2130x720x1375 mm
Chassis ground clearance	120 mm	Platform ground clearance	380 mm
Chassis width	720 mm	Track width	150 mm
Max. Digging depth	1250mm	Track height	320 mm
Max. Dumping height	1650 mm	Max. Digging height	2350 mm
Min. Rotation radius	1120 mm	Max. Digging radius on ground	2450 mm
Max. Digging depth of bulldozer blade	200mm	Max. Upgrade height of bulldozer blade	345 mm
